Description

Improved for More Groove
A new generation volca sample with more memory, features, and connectivity to take your beat making further than ever before.

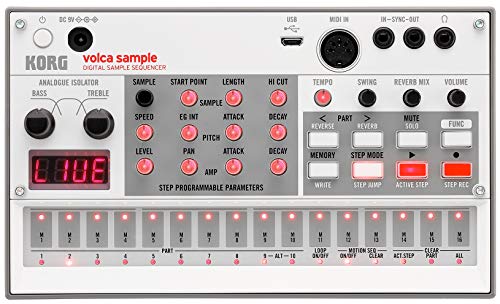

The volca sample is the compact and powerful sample-based drum machine that has captured attention and creativity of countless players around the world.

The newest version retains all of the features which made the original so popular, and adds a micro USB port for better connectivity, increased sample memory, a new up to date sound library and additional functions for an improved workflow.


Specifications

• Keyboard: Multi-touch Keyboard
• Sampler
• Type: PCM
• Maximum Polyphony: 8, 200（150 presets + 50 empty slots. All slots are user over writable）
• Memory Size for Sample: 8MB, 130 seconds
• Sampling Frequency: 31.25kHz, 16bit
• Edit: Sample（Start Point, Start Delay, Length, Hi Cut), Pitch（Speed, EG Int, Attack, Decay), Amp（Level, Pan, Attack, Decay), Reverse On/Off

Effects

• Digital Reverb: On/Off, Mix
• Analogue Isolator: Bass, Treble

Sequencer

• Number of Parts: 10
• Number of Steps: 16
• Number of Recording Patterns: 16 (1 to 10 have presets loaded by default on factory settings. Pattern chain function)
• Control: Motion Sequence、Active Step、Step Jump、Swing

Inputs

• Audio Input: Headphones (3.5mm stereo mini jack)
• Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Maximum Output level: 5V)
• MIDI: MIDI IN
• USB: micro-B USB port

Power

• Battery Life: Approximately 10 hours (using alkaline batteries)
• Power Supply: AA alkaline battery ×6, AA nickel-metal hydride battery ×6, or AC adapter "KA-350" (optional)

Others

• Included Items: AA alkaline battery ×6 (for verifying operation), Sync cable
• Accessories: KA-350 AC adapter, SEQUENZ CB-4VOLCA hard shell case, SEQUENZ CC-VOLCA dedicated carrying case, SQ-CABLE-6 sync cable


Size & Weight

• 193（W）x 115（D）x 45（H）mm (including knob height)
• 372g (Excluding batteries)
