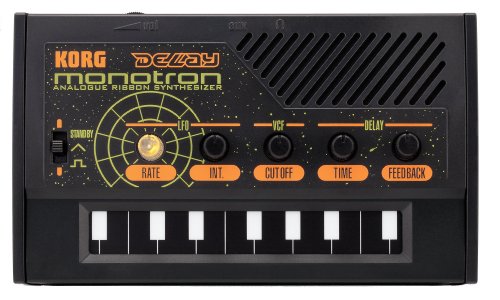

The monotron DELAY features a Space Delay that can produce intense, analog-like echo effects.
Go Anywhere Analog: That was the theme behind the remarkable battery-powered and palm-sized analog synthesizer that Korg dubbed the monotron. Now the powerful and fun-to-play monotron is joined by two new siblings. Each is played from a ribbon controller keyboard with newly added features. The monotron's simple operation and ease of use (5 knobs and 1 switch) is alive and well, inviting hours of enjoyment and musical exploration.
- Space Delay offers analog-style echoes
- New LFO with selectable triangle or square waveshape
- Wide-range ribbon controller keyboard
- Original Analog (VCF) Filter taken from the classic MS-10 & MS-20
- Aux input jack lets you apply filter/delay to any audio source
- Built-in speaker and battery power for Go Anywhere Analog sound
- Headphone jack for private use
Classic Analog Synth / Space Delay Combination
A good delay was an essential part of the classic analog synthesizer sound. More often than not, that delay came from a tape-style echo machine until affordable digital delays were created. The monotron DELAY is an analog synthesizer optimized for sound effects. In addition to its analog oscillator, filter, and LFO, it also provides a Space Delay that's indispensable for swooping, cosmic sounds. The monotron DELAY even reproduces the pitch changes that occur when you vary the delay time, just as though you were using an analog tape echo. This fat and warm delay will add an authentic edge to your analog sounds!
Dual-Waveform LFO
The Low Frequency Oscillator (LFO) waveform used to modulate the pitch now offers a choice of waveshapes - a new square wave plus the traditional triangle wave. Both the Rate (Speed) and the Intensity (Depth) can be adjusted independently. In addition, a trimpot on the back panel can continuously adjust the shape/direction of the triangle wave or the pulse-width of the square wave to deliver even more versatility. Used in conjunction with the delay, the LFO can create dazzling effects and provide unique possibilities for embellishing your songs.
Wide-Range Ribbon Keyboard
The monotron DELAY's ribbon controller keyboard features a wide, four-octave range. This design allows the pitch to be controlled even more aggressively and dynamically, making the monotron DELAY a great weapon for a DJ to get the floor moving with irresistible sound. The reversed white keys and body adornments glows under black light illumination, making the monotron DELAY ideal for delivering a striking visual impact in nearly any club environment.
Classic Korg Filtering
The distinctive tone of an analog filter (VCF) can dramatically alter and enrich the sound. The monotron DELAY uses the same highly acclaimed VCF circuit as KORG's classic MS-10 and MS-20 semi modular synthesizers. Originally released over 30 years ago, these instruments are still coveted today for their aggressive, dynamic filters. The VCF Cutoff knob sets the frequency or tone of the filter; the VCF Peak knob adds emphasis. A powerful filter is an essential aspect of any analog synthesizer, applying dramatic tonal changes to the sound, and projecting an intense personality that will stand out in any live performance.
Fully-patchable Filter
The input jack (AUX input) built into the monotron DELAY's compact body allow you to place any audio source into the monotron DELAY's signal path, directly before the analog filter and delay circuit. This provides a great way to connect a KAOSSILATOR, a guitar, or a digital audio player to the monotron and enjoy tone-bending filter and delay effect.
Go Anywhere Analog
A miniature speaker is built into the monotron DELAY. Along with the battery operation and compact size, this feature allows you to enjoy the share the monotron DELAY's analog synthesis sound with your friends, anywhere, at any time. There's also a headphone output that you can use when practicing in private, creating sounds at home, recording, or for connecting to an amplifier or PA system.
FREQUENTLY ASKED QUESTIONS
1. What is the KORG Monotron Delay?
TheKORG Monotron Delay is a compact, portable analog synthesizer featuring aspace delay effect, a classic KORG analog filter, and aribbon controller keyboard. It's designed to produce unique, expressive sounds and is highly portable due to its battery-powered operation and built-in speaker.
2. What are the key features of the Monotron Delay?
Analog Sound Engine: 1 VCO (Voltage Controlled Oscillator), 1 VCF (Voltage Controlled Filter), and 1 LFO (Low-Frequency Oscillator).
Space Delay: Offers analog-style echoes, ideal for swooping, cosmic sounds.
Dual-Waveform LFO: Allows modulation of pitch with a selectabletriangle orsquare waveshape.
Wide-Range Ribbon Controller Keyboard: A four-octave ribbon controller, allowing dynamic pitch control.
Classic MS-10/MS-20 Analog Filter: Includes cutoff and resonance (peak) controls for powerful tonal shaping.
Aux Input Jack: Apply the filter and delay effects to any external audio source.
Built-in Speaker and Battery Power: Operates on two AAA batteries for portability.
Headphone Jack: For private practice or connecting to external amplifiers.
3. What types of sounds can I create with the Monotron Delay?
The Monotron Delay excels at producing:
Space Echo Effects: TheSpace Delay produces lush, analog-style echo effects, perfect for adding depth and atmosphere to your sound.
Sci-Fi and Cosmic Sounds: The combination of the filter, LFO, and delay makes it perfect for creating vintage sci-fi sounds and eerie, experimental textures.
Bass and Lead Lines: The analog oscillator and ribbon controller can create deep bass and expressive lead sounds.
4. How do I control the sound and effects of the Monotron Delay?
The Monotron Delay features aribbon controller keyboard that lets you slide your finger to change the pitch. It also has five knobs:
LFO Rate: Controls the speed of the LFO.
LFO Intensity: Controls the depth of modulation applied to the pitch.
VCF Cutoff: Controls the frequency at which the filter cuts off, shaping the brightness or darkness of the sound.
Delay Time: Adjusts the length of the delay effect.
Delay Feedback: Controls the number of repeats for the delay.
5. Can I connect the Monotron Delay to other devices?
Yes, the Monotron Delay has a3.5mm AUX input, which allows you to run external audio through itsanalog filter and delay. This means you can connect instruments like aKAOSSILATOR, guitar, or digital audio player to add analog filtering and delay effects.
6. What are the LFO capabilities?
TheLow Frequency Oscillator (LFO) has selectabletriangle orsquare waveshape options. It can be used to modulate the pitch for a wide variety of effects, from subtle vibrato to extreme pitch sweeps. TheLFO Rate (speed) andLFO Intensity (depth) can be adjusted independently, providing significant control over the modulation. Additionally, there's a trimpot on the back to further tweak the triangle wave shape or square wave pulse-width.
7. Is the Monotron Delay polyphonic or monophonic?
The Monotron Delay ismonophonic, meaning it can play only one note at a time. It is best suited for creating individual lead lines, bass notes, and sound effects, rather than playing chords.
8. What power options are available for the Monotron Delay?
The Monotron Delay is powered bytwo AAA batteries, making it highly portable and easy to use on the go.Battery life is approximately8 hours with standard AAA alkaline batteries. There is no AC adapter option available.
9. Does the Monotron Delay have MIDI capability?
No, the Monotron Delay does not featureMIDI connectivity. It is designed as a standalone analog synthesizer with a simple interface for direct hands-on control, making it more suitable for sound exploration rather than precise sequencing or integration into a larger MIDI setup.
10. What is the purpose of the filter on the Monotron Delay?
The Monotron Delay features the classicKORG MS-10/MS-20 analog filter, which is known for its aggressive and distinctive character. TheVCF Cutoff knob sets the frequency where the filter starts to reduce the volume of higher frequencies, and theVCF Peak knob adjusts the resonance to accentuate frequencies around the cutoff point. This filter is key to shaping the tonal quality and adding movement to the sound.
11. How does the Space Delay effect work?
The Monotron Delay’sSpace Delay is designed to recreate the classic sound of vintage tape delays. It allows for:
Delay Time: Adjust the time between the repeats, ranging from short slapback echoes to long, spaced-out echoes.
Delay Feedback: Controls how often the sound is repeated, allowing for anything from a single repeat to dense, almost infinite feedback loops. The delay circuit also changes pitch when the delay time is adjusted, similar to traditional tape delay.
12. Is the Monotron Delay suitable for beginners?
Yes, the Monotron Delay is perfect for beginners thanks to itssimple operation (only five knobs and one switch) and intuitive ribbon controller. It allows users to learn the basics of analog synthesis, including pitch, modulation, filtering, and delay, without needing complex knowledge or experience.
13. How portable is the Monotron Delay?
The Monotron Delay is extremely portable due to its compact size of120 mm x 72 mm x 28 mm and weight of95g (without batteries). Its built-in speaker and battery-powered design allow you to take it anywhere and start creating sounds on the spot. It also has aheadphone output for more private use or to connect to external speakers.
14. How can I integrate the Monotron Delay with other instruments in a live setup?
You can use theAUX input to process other audio sources through the Monotron Delay’s filter and delay. You can also use theheadphone output to send the sound to a mixer, PA, or amplifier, making it a flexible tool for adding analog character to a live performance or DJ set.
15. What are some creative ways to use the Monotron Delay?
Sound Design and Effects: Create unique sci-fi sound effects by manipulating thefilter,LFO, anddelay.
Processing External Audio: Use theAUX input to filter and add delay to external audio sources like vocals or guitars, giving them an analog edge.
Live Performance: Theribbon controller allows expressive, hands-on control, ideal for creating interesting sound textures during a live performance.
16. Does the Monotron Delay have a built-in speaker?
Yes, the Monotron Delay has aminiature built-in speaker, which allows for instant sound output without the need for additional equipment. The speaker is disabled when using theheadphone output, which can also be used to connect to larger sound systems or for private practice.
17. Can I integrate the Monotron Delay with a DAW (Digital Audio Workstation)?
The Monotron Delay does not havedirect USB or MIDI integration, but you can connect itsheadphone output to an audio interface to record its sounds into your DAW. This allows you to add the unique analog character of the Monotron Delay to your digital projects.
18. What types of music genres work well with the Monotron Delay?
The Monotron Delay is particularly suitable for genres likeambient,experimental,lo-fi,dub, andelectronic due to its expressive delay and filter effects. It’s also great for adding analog warmth and unique textures to other genres when used creatively.
19. What are the limitations of the Monotron Delay?
No MIDI Connectivity: This limits its integration with other modern music production setups.
Monophonic: It only plays one note at a time, so it cannot produce chords or polyphonic textures.
Ribbon Controller Precision: The ribbon controller may be difficult to use for precise pitch control, especially for beginners.
20. How do I maintain my Monotron Delay?
Battery Care: Remove the batteries if you won’t be using the Monotron Delay for an extended period to prevent leakage.
Cleaning: Use a dry, soft cloth to clean the device; avoid using liquids or harsh chemicals.
Storage: Store in a dry location away from extreme temperatures or humidity to protect its components.
