Description

LOOK NO FURTHER. THE ANSWER FOR LOOPING IS BOSS!
The BOSS RC-1 is our simplest and most user-friendly Loop Station ever, and it's a ton of fun! Since the RC-20 Loop Station was first released in 2001, BOSS has led the way by continually releasing new looping products. Though they've been used and enjoyed by various looping artists and performers, BOSS still pursued an easier and more affordable solution. The RC-1 is a straightforward looper that is easy to operate. Experience the fun of looping when you record, playback, overdub, and undo or redo loops using this compact BOSS stompbox. And of course, the RC-1 retains the BOSS quality and performance that musicians around the world have come to expect and rely on.

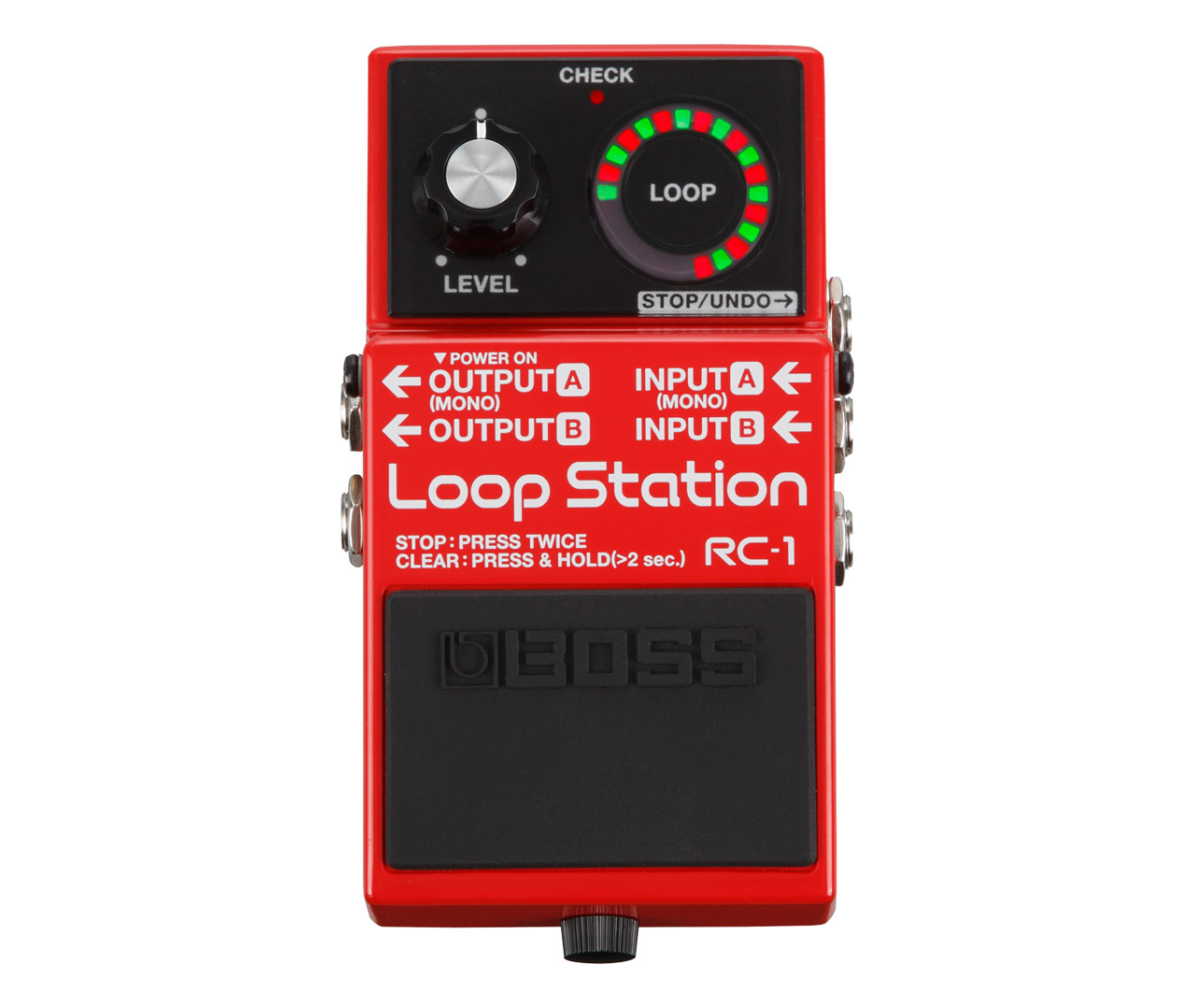

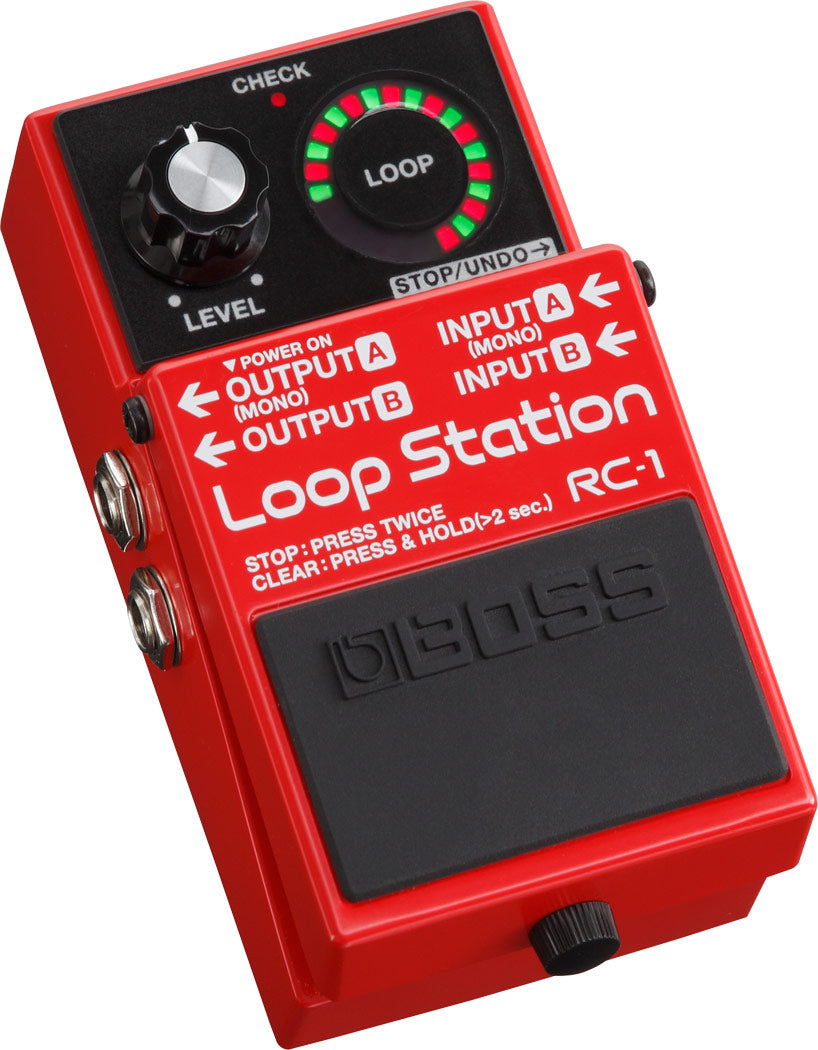

On the top panel, there is a new and innovative loop indicator, which consists of a 24-segment LED laid out in a circular pattern. You can quickly and easily determine the current status of the Rec/Overdub/Play modes. With a maximum 12 minutes of stereo recording time, the RC-1 is capable of capturing any extended performance that you can create or imagine! The stereo in/out jacks can be used with stereo effects and amplifiers. Additionally, they allow you to connect stereo instruments, such as synthesizers. Other convenient features include battery and AC power, as well as flexible external footswitching capabilities. The RC-1 is an especially great partner to start enjoying looping!

• Straightforward and easy to operate
• Newly designed loop indicator displays the current loop mode (Rec/Overdub/Play)
• Runs on a single 9-volt alkaline battery (approximately 4.5 hours of battery life)
• Can be used with an optional AC adaptor (PSA series: sold separately)
• 12 minutes of stereo recording time
• Stereo inputs and outputs
• Flexible external footswitch options
• Recorded phrase is retained in memory even after the RC-1 is turned off

You'll never be "out of the loop."
Everyone always wants to be "in the loop," but with other loopers, you may not have enough recording time to capture every phrase that you want for your masterpiece. With its 12 minutes of stereo recording time, the RC-1 has the most stereo recording time in its class.

What are some applications for the RC-1?
You can incorporate the RC-1 into your existing pedalboard or effects system. It's also a great way to learn, practice or improve your playing by quickly and easily creating your own backing track to jam along with. You can also loop stereo instruments like synthesizers and have a ball playing along.

What's up with the stereo inputs and outputs?
Apparently, some other products are based on the belief that mono recording and playback is good enough for you. In this day and age, we here at BOSS believe that it's not too much for you to expect a stereo looper. With stereo inputs and outputs, you can record and playback your creations in stereo, the way music was intended to be played, performed, and enjoyed.

Is the RC-1 the right choice for you?
It doesn't matter if you're a beginner or a concert touring professional. The RC-1 is a great choice for any guitarist, bassist or keyboardist concerned with usability and simplicity while having lots of fun!

Is that new loop indicator just eye candy?
Well, yes and no. Sure, it's cool to look at, but the new indicator on the RC-1 is also very innovative and useful. You can clearly and easily see the current status of the Rec/Overdub/Play modes. You can also switch the indicator to an alternate mode, which visually tracks your loop. During overdubbing and playback, the speed at which the indicator rotates directly corresponds to the length of the loop.

Why would I want an external footswitch?
The optional FS-7 makes footswitching even simpler and easier! And, its compact size won't take up much space on your pedal board. Pressing the "A" switch will stop the Rec/Overdub/Play mode. Hold down the "A" switch for two seconds or longer to erase the phrase. By pressing the "B" switch, you can easily undo or redo your phrase. It's that easy!

FREQUENTLY ASKED QUESTIONS

1. How can I start recording on the BOSS RC-1?

• Press the pedal once to start recording (red light).

2. How can I pause the loop on the BOSS RC-1?

• The BOSS RC-1 does not have a pause function. Press the pedal twice within 1 second to stop.

3. How do I change the modes on the BOSS RC-1?

• While holding down the pedal, turn the power on by inserting a plug into the OUTPUT A jack.

4. What is the default recording mode of BOSS RC-1?

• The default mode follows this order: Recording → Playback → Overdubbing (lower half).

5. Can I change the recording order on BOSS RC-1?

• Yes, by double-pressing the pedal the order changes to Recording → Overdubbing → Playback (upper half).

6. On the BOSS RC-1, what does the LOOP indicator show in the default display mode?

• Upper half: The indicator rotates at a speed that reflects the length of the recorded phrase.

7. What happens when I switch to the lower half of the display mode of BOSS RC-1?

• The LOOP indicator rotates rapidly, and the playback location blinks.

8. Can I layer loops with the BOSS RC-1?

• Yes, using overdubbing.

9. Can I delete the last recorded overdub on BOSS RC-1?

• Yes. To delete the last overdub, hold the pedal for 2 or more seconds while the loop is playing. The green LOOP indicator blinks rapidly.

10. Can I redo the overdub that I just deleted on BOSS RC-1?

• Yes, hold the pedal for 2 or more seconds during playback or overdubbing. The green LOOP indicator blinks rapidly.

11. How do I delete the entire loop on the BOSS RC-1?

• Hold the pedal for 2 or more seconds while stopped to delete the entire loop; this includes the first recording and all overdubs.

12. How long does a 9V battery last in the BOSS RC-1?

• About 3 to 4.5 hours, depending on use.

13. Can I use the BOSS RC-1 with a multitrack recording machine?

• Yes.

14. How can I prevent the BOSS RC-1 from recording effects from my amp’s effects loop during playback?

• Place the BOSS RC-1 at the end of the signal chain.

15. How many instruments can be connected to the BOSS RC-1 at once?

• It can handle two separate sound sources. Use an external mixer for more.

Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Maximum Recording Time: Approximately 12 minutes
• Controls: Pedal switch, LEVEL knob
• Indicators: CHECK indicator, LOOP indicator
• Connectors: INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, STOP/UNDO jack: 1/4-inch TRS phone type, DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 95 mA
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 3 hours
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series, Footswitch: FS-5U, FS-6, FS-7

Size & Weight

• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm, 2-3/8 inches
• Weight: 430 g, 1 lb

*0 dBu = 0.775 Vrms
