Description

CRUNCHY OVERDRIVE EFFECTS FOR BASS

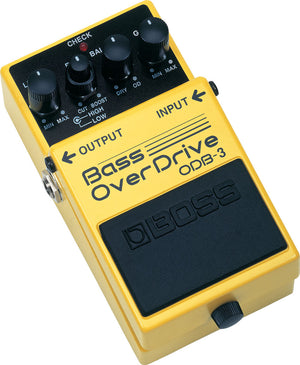

The ODB-3 Bass OverDrive delivers the chest-resonating distortion that hard rock, thrash, and punk bassists have been waiting for. This hot compact pedal has been designed specifically for bass applications.

- OverDrive pedal specifically designed for bass
- Onboard two-band equalizer
- Balance knob controls dry/overdriven sound
- AC adaptor or 9V battery operation


FREQUENTLY ASKED QUESTIONS

1. Does the BOSS ODB-3 cut off the bass signal when turned off?

• No. The BOSS ODB-3 doesn't mute the bass. When turned off, it is only a clean signal.

2. Can I use the BOSS ODB-3 without distortion?

• Yes, you can set the level.

3. How can I reduce the noise of the BOSS ODB-3?

• Use good quality cables and put a noise reduction pedal after the BOSS ODB-3.

4. What is the difference between the turbo rat and the BOSS ODB-3?

• The BOSS ODB-3 sounds fuller because it is deeper low ends.

5. Where do I place the BOSS ODB-3 in the signal chain?

• The best place to put the BOSS ODB-3 is between the fuzz pedal and the chorus pedal.

6. What is the difference between the BOSS ODB-3 and the EHX Bass Soul?

• The BOSS ODB-3 can be set to either be subtle or fuzzy. It is more versatile than the EHX.

7. What is the difference between the BOSS ODB-3 and the MXR?

• The two pedals are similar but the BOSS ODB-3 has more sound stages and is more versatile.

8. Can I use the BOSS ODB-3 with the BOSS BASS EQ?

• Yes

9. Does the BOSS ODB-3 work with a Sansamp Bass driver?

• Yes

10. Does the BOSS ODB-3 need power?

• Yes, you can use a 9v battery or a power adapter.

Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

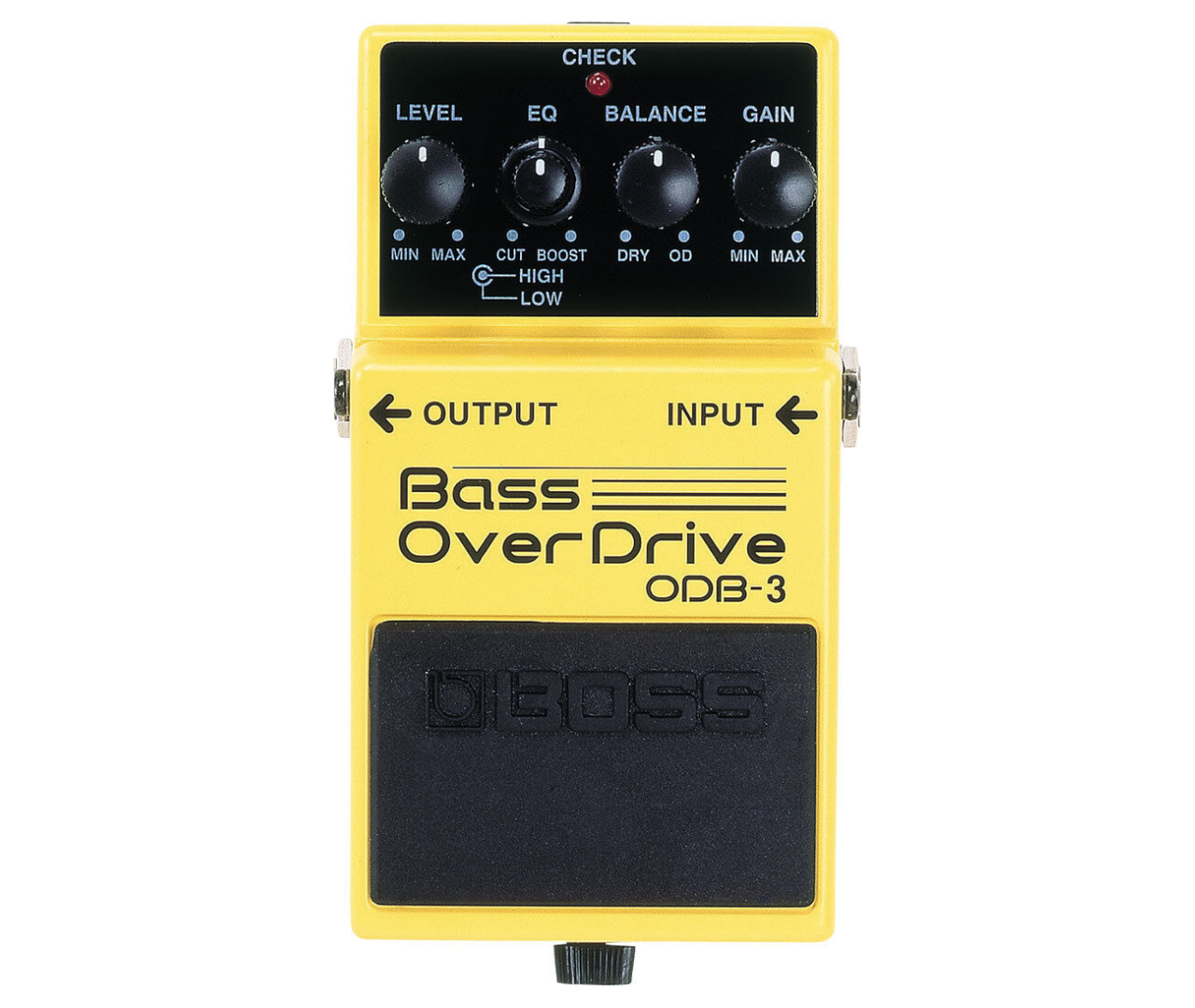

• Controls: GAIN knob, BALANCE knob, EQ HIGH/LOW knob, LEVEL knob, Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN jack
• Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 20 mA
• Expected battery life under continuous use: Carbon: Approx. 24.5 hours, Alkaline: Approx. 40.5 hours *These figures will vary depending on the actual conditions of use.
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

Size & Weight

• Width: 73 mm (2-7/8 inches)
• Depth: 129 mm (5-1/8 inches)
• Height: 59 mm (2-3/8 inches)
• Weight (including battery): 390 g 14 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
