Description

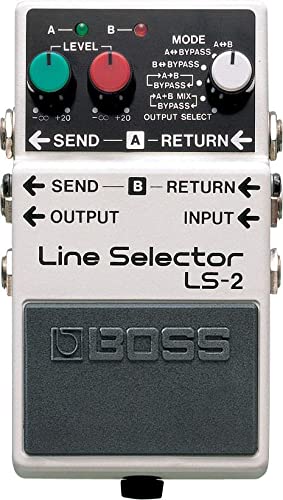

BOSS LS-2 Pedal

SIMPLIFIES YOUR SETUP
The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

- Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
- Provides two line loops with Level control and six looping modes
- Can supply power to several BOSS compact pedals when used with an AC adaptor
- The ideal power supply and master switching unit for multiple effects setups



FREQUENTLY ASKED QUESTIONS

1. Can I use the BOSS LS-2 to split the guitar signal to two amps?

• Yes.

2. Can I use the BOSS LS-2 to route an expression pedal to multiple pedals?

• No.

3. Can I use the BOSS LS-2 to route my guitar and switch between two different sets of effects?

• Yes, only if both are connected to a single amp.

4. Can the BOSS LS-2 allow me to send 50% of my bass signal to the amp and 50% to the effect chain?

• Yes. You can adjust the level for each.

5. Is the mix parallel or series?

• Parallel.

6. Can I use the BOSS LS-2 to mix the audio from my guitar on my computer?

• Yes.

7. Can you use the BOSS LS-2 to switch between two pedalboards in front of the same amp?

• Yes.

8. Can I use the BOSS LS-2 switch between overdrive and distortion?

• Yes, the BOSS LS-2 allows you to switch between different pedals.

9. Can I use the BOSS LS-2 to run two guitars into one amp?

• Yes.

10. Can I use the BOSS LS-2 to switch between two instruments into one amp?

• Yes.

11. Does the BOSS LS-2 allow me to blend the original signal with the looped audio?

• Yes.

12. Can I connect a zoom g5n on line A and a stompbox on line B of the BOSS LS-2?

• Yes. You can switch between A and B separately.

13. Can I use the BOSS LS-2 as a footswitch to switch between clean and dirty channels in one amp?

• Yes. The BOSS LS-2 is not a footswitch but you can use it to switch between two channels in one amp.

14. Can I use the BOSS LS-2 to run my Electro Harmonix Pitchfork in front of the amp or in the effects loop?

• Yes.

15. Can I use the BOSS LS-2 with my bass guitar?

• Yes.

Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: MODE selector switch, LEVEL knobs A/B, Pedal switch
• Indicator: Line indicator A/B (Used for indication of check battery)
• Connectors: INPUT jack: 1/4-inch phone type, SEND jacks A/B: 1/4-inch phone type, RETURN jacks A/B: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN/OUT jack
• Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 30 mA
• Expected battery life under continuous use: Carbon: Approx. 14.5 hours, Alkaline: Approx. 29.5 hours * These figures will vary depending on the actual conditions of use.
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series, Parallel DC Cord: PCS-20A


Size & Weight

• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm, 2-3/8 inches
• Weight (including battery): 430 g, 1 lb

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
