[Pre-Owned] Box is damaged, worn; product used, in good condition
NATURAL OVERDRIVE WITH ENDLESS SUSTAIN!

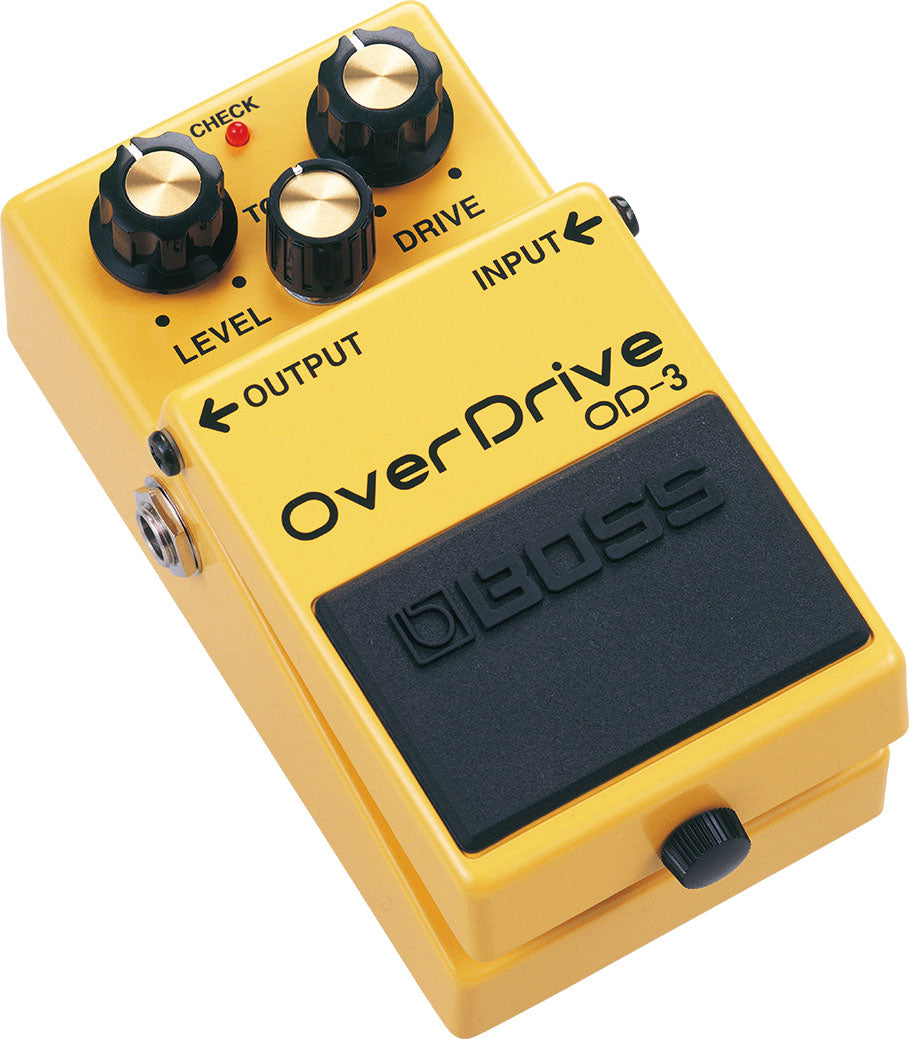

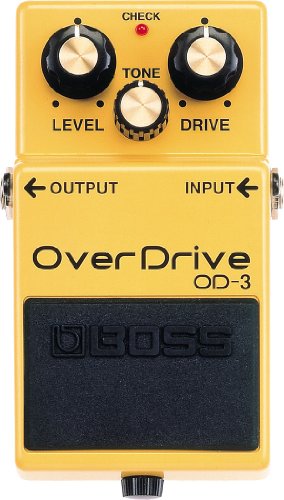

Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.
- Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
- Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
- Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
- Straightforward Drive, Tone and Level controls
SPECIFICATIONS
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: DRIVE knob, TONE knob, LEVEL knob, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 15 mA
Expected battery life under continuous use: Carbon: Approx. 34.5 hours, Alkaline: Approx. 56 hours *These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
Options (sold separately): AC adaptor: PSA series
SIZE AND WEIGHT
Width: 73 mm (2-7/8 inches)
Depth: 129 mm (5-1/8 inches)
Height: 59 mm (2-3/8 inches)
Weight (including battery): 370 g (14 oz)
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
