Description

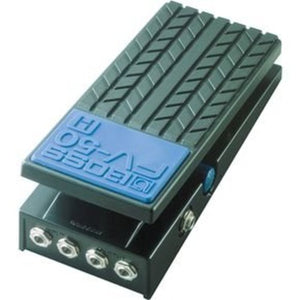

The high-impedance FV-50H is designed to be connected before guitar effect units in the signal chain.

- High-impedance FV-50H designed for connection before guitar effects units
- Minimum Volume knob lets users set minimum volume as desired
- Convenient Tuner Out jack enables speedy tuning on stage

FREQUENTLY ASKED QUESTIONS

1. Does the BOSS FV-50H need power?

• No.

2. Will the BOSS FV-50H work with my e9 pedal steel guitar?

• Yes.

3. Will I lose the tone or effects if I use the BOSS FV-50H?

• Yes. The BOSS FV-50H may affect the tone if it is placed at the start of the signal chain or if you’re using the wrong impedance.

4. Can I use the BOSS FV-50H as an expression pedal?

• Yes, by using a TRS to dual TS cable.

5. Can I use the BOSS FV-50H as a “wah” pedal?

• No, but you can use the BOSS FV-50H as an expression pedal to control a “wah” pedal.

6. Where should I place the BOSS FV-50H in the signal chain?

• The BOSS FV-50H is a high-impedance volume pedal that is usually placed at the start of the chain.

7. What are the differences between the BOSS FV-50H and the BOSS FV-50L?

• BOSS FV-50H
  • It is a high-impedance pedal
  • Set at the start of the signal chain
• BOSS FV-50L
  • A low-impedance pedal
  • Set at the end of the signal chain
  • Can be used for guitars and keyboards

8. Can I use the BOSS FV-50H as a boost for my signal chain?

• Yes. You can keep the BOSS FV-50H on a low setting and use it as a boost when needed.

9. What happens if I put the BOSS FV-50H after a buffered signal?

• The BOSS FV-50H should work. It may sound different depending on the pedals you put before it.

10. Can I use the BOSS FV-50H with my keyboard?

• Keyboards work best with a low-impedance pedal.

11. Can I use the BOSS FV-50H for my syb5?

• Yes.

12. Is the BOSS FV-50H spring loaded?

• No

Specifications

• Connectors: Input x 2, Output x 2, Tuner Out

Size & Weight

• Width: 86 mm (3-7/16 inches)
• Depth: 200 mm (7-7/8 inches)
• Height: 54 mm (2-1/8 inches)
• Weight: 400 g (0 lbs. 15 oz.)

*The specifications are subject to change without notice.
